Canon Connect Station CS100 1TB Storage Device

PRODUCT HIGHLIGHTS

• Wirelessly Accessible Storage Hub
• Dedicated to Canon Cameras & Camcorders
• Built-In 1TB Hard Drive
• NFC and Wi-Fi Connectivity
• SD/CF Card Slots and USB Port
• HDMI Out for Viewing on HDTV
• Simple Interface for File Management
• Compatible with Wireless Printers
• Web Browser and iMAGE GATEWAY Support

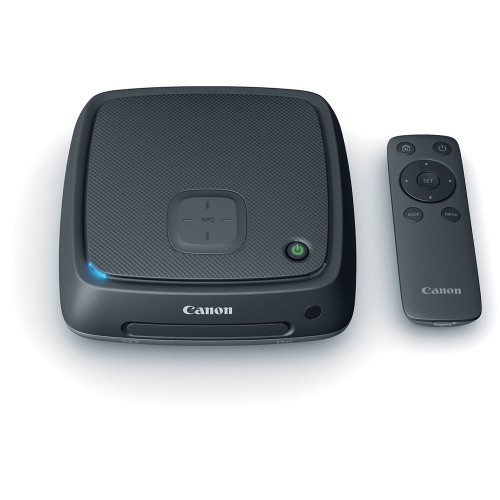

• Includes CS-RC1 Remote Control

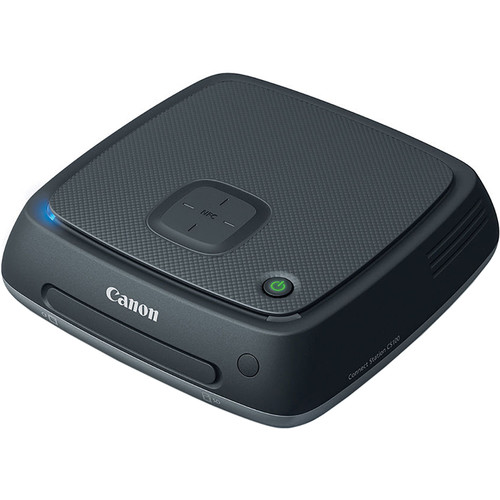

  Canon CS100 Overview

  Enabling wireless backing up of image and video files from Canon cameras and camcorders, the Connect Station CS100 is a media hub designed for storing, managing, and viewing your multimedia content. Featuring a built-in 1TB drive, this storage device is able to back-up approximately 150,000 photos or 70 hours of video from your camera, with the convenience of syncing your device via NFC or over Wi-Fi. Once the content has been loaded into the CS100, you can browse, manage, sort, and view your files using an intuitive menu system. Playback is supported via HDMI. Wireless printing is possible to compatible PIXMA/SELPHY printers, and imagery can be downloaded to PCs or smart devices via a web browser. The CS100 offers both convenience and practicality in how to import, view, and export your imagery.

  The built-in 1TB of storage is able to hold approximately 150,000 photos or approximately 70 hours of video.

  NFC and Wi-Fi connectivity allow you to simply tap your NFC-enabled Canon camera to the device in order to automatically transfer photos and movies over Wi-Fi. For cameras without built-in Wi-Fi or NFC, a USB 2.0 port and both CF and SD card slots are also available for importing content.

  For large-scale playback on an HDTV or monitor, an HDMI out port can be used to preview your imagery. The photos' full resolution is maintained during playback as well as the smooth playback from high bitrate video formats. Additionally, the included remote control (CS-RC1) permits simple, wireless control over playback and file navigation.

  Files are automatically sorted by date (month/year) or by the specific shooting device. For further refinement, an easy-to-navigate menu structure allows you to create albums for more personalized sorting.

  Wireless printing is supported from the CS100, which is fully compatible with PictBridge and wireless LAN-enabled PIXMA, SELPHY, or other compatible printers.

  Accessible via a web browser on smartphones, tablets, or PCs, the contents of the CS100 can also be viewed or downloaded to other devices. Furthermore, imagery can be imported from smart devices, and compatible Android devices will automatically connect without the need to manually launch the web browser interface.

  Seamless and wireless file transferring between two Connect Stations is possible, as well as the ability to share directly to social networks via the Canon iMAGE GATEWAY.

  The following file formats are supported by the CS100:

• Photo: JPEG, CR2
• Video: MP4, MOV, AVCHD

• The contents of the CS100 can securely be offloaded to another external hard drive via USB connection for backing up your photo and video library.


  Canon CS100 Specs

  Hard Disk
  Storage Capacity	Built-in 1 TB drive (actual capacity is less than 1 TB due to system requirements)

  Wireless LAN
  Standard Compliance	IEEE802.11b/g/n
  Transmission Method	DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g / n)
  Transmission Range	Approx. 49.2' / 15 m
  Transmission Frequency	2.412 - 2.462 GHz
  Security	WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES)

  Wired LAN Interface
  Interface Type	10BASE-T, 100BASE-TX, 1000BASE-T

  Interface
  USB	Hi-Speed USB (USB 2.0)
  HDMI Out	Type A, CEC-compatible
  Card Slot	1x CF (Type I or II compatible) 1x SD (SD, SDHC, SDXC; UHS-I is not compatible)

  Supported File Types
  Still Image	JPEG, RAW (CR2 only)
  Video	MP4, MOV, AVCHD

  Physical
  Operating Environment	32-104°F / 0-40°C 85% or less relative humidity
  Power Consumption	During operation: Approx. 10 W During standby: Approx. 9.5 W
  Power Adapter	Compact Power Adapter CA-PS00 100-240 V AC 50/60 Hz 5.9' / 1.8 m DC cord
  Dimensions	CS100: 6.1 x 2.0 x 6.1" / 155.6 x 51.1 x 155.6 mm Remote Controller CS-RC1: 1.6 x 0.6 x 4.9" / 41.3 x 15.1 x 125.5 mm Compact Power Adapter CA-PS00: 4.4 x 1.1 x 1.8" / 112 x 29 x 45 mm (excluding power cord)
  Weight	CS100: 1.3 lb / 570 g Remote Controller CS-RC1: 1.5 oz / 48 g Compact Power Adapter CA-PS00: 6.5 oz / 185 g (excluding power cord)
