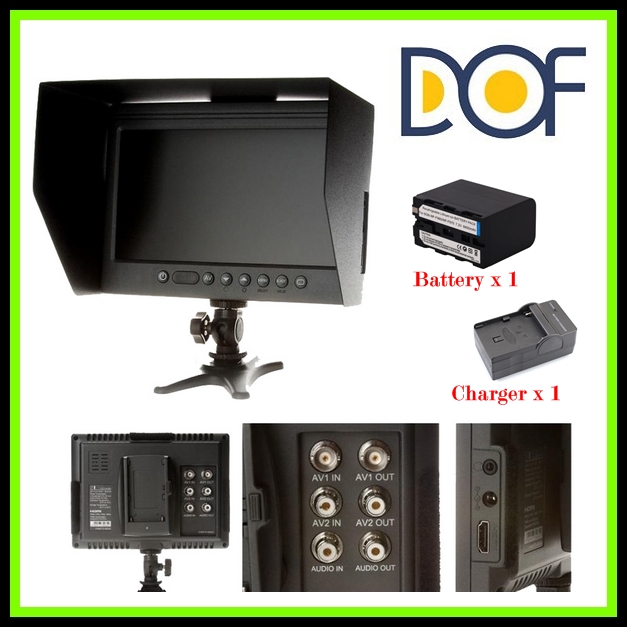

F&V DOF F1 7" HDMI LCD On Camera Monitor with Sun Shade - With Battery & Charger

F&V DOF F1 7" HDMI LCD On Camera Monitor with Sun Shade for DSLR Cameras

DOF is the Sub-brand belong to F&V

verview:

The F1 monitor is lightweight, portable, and boasts a LED backlight display. Top that off with the F1's ability to accept a wide range of operating voltages, and you'll see why this broadcast quality monitor is a perfect solution for any project. This HDMI model features Composite RCA, Composite BNC, and HDMI connectivity. With its LED display, this monitor consumes less power and delivers more vibrant, accurate images. If needed, the monitor gives you the option to view in color or black & white as well as flip the image vertically. The F1 monitor automatically detects whether the signal is NTSC or PAL, and you can choose whether to display in either a 16:9 or 4:3 aspect ratio. The monitor comes packaged with a Sony NP-F DV battery plate & 1 Battery & 1Charger

Features:

• HDMI Connectivity
• LED Backlight Display
• Automatically detects NTSC or PAL
• Selectable Aspect Ratio 16:9 or 4:3
• View in Color or Black & White
• Vertical Image Flip
• Efficient Power Consumption
• Wide Range of Operating Voltages
• Focus Assist

Specifications:

• Screen Size: 7.0” (diagonal)
• Display Area: 6.1 x 3.4” (154 x 86mm)
• Aspect Ratio: 16:9/4:3 Selectable
• Pixels: 800 x 480
• Color Depth: 24-bit (16,777,216 colors)
• Contrast Ratio: 500:1
• Viewing Angle: 70° (L), 70° (R) x 70° (T) x 50° (B) (CR≥10)
• Dot Pitch: 0.03 (W) x 0.007 (H)” (0.642 x 0.179mm)
• Compatible Input Formats: Composite – NTSC/PAL; HDMI – 480i/p, 576i/p, 720i/p, 1080i/p
• Operating Voltage: 5.8 – 16.8V DC
• Power Consumption: 0.5Amp (Max) @ 12VDC
• Audio Power: 1W max
• Video Input/Output: AV1 – Composite BNC Female (75ohm); AV2 – Composite RCA Female (75ohm)
• HDMI Input: HDMI (Type A) Female
• Audio Input/Output: RCA Female (75ohm)
• Nominal Weight: 15 oz / 425 g (excluding battery)
• Nominal Dimensions (L x W x H): 17.5 × 13 × 3.2 (cm)

Package Contents:

• (1) x F1 7" LCD Monitor - HDMI
• (1) x Kai Arm
• (1) x F1 Sun Shade
• (1) x Mini-HDMI to Standard-HDMI Cable (2’)
• (1) x Sony NP-F750 DV Battery Plate
• (1) x  Operation manual
• (1) x  Warranty card
• (1) x  Battery
• (1) x  Charger
