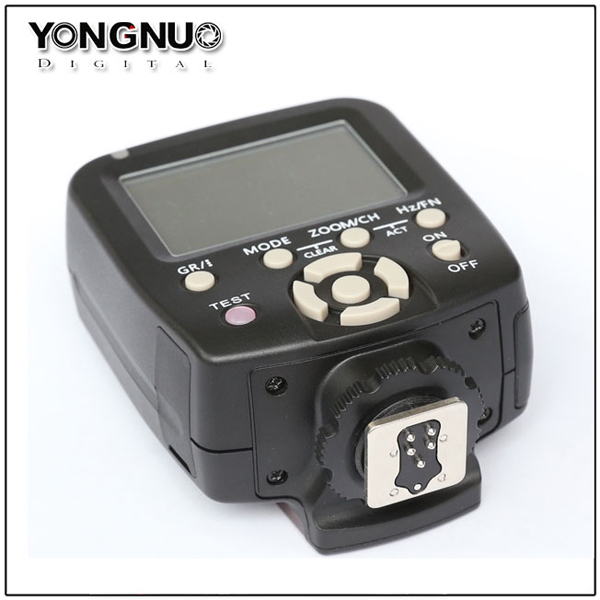

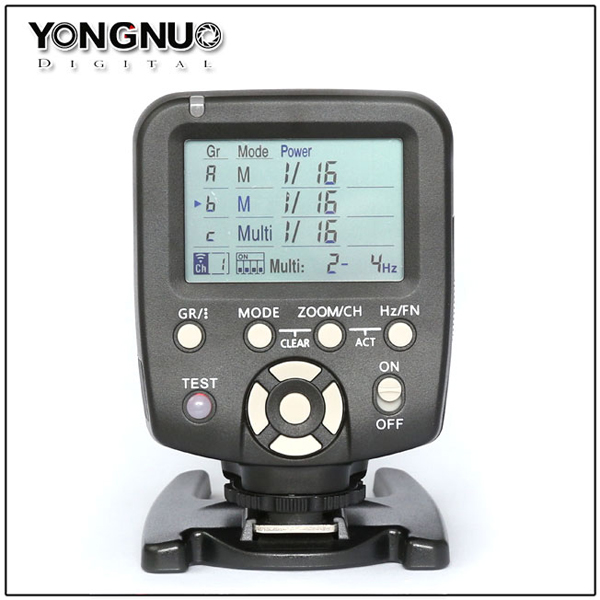

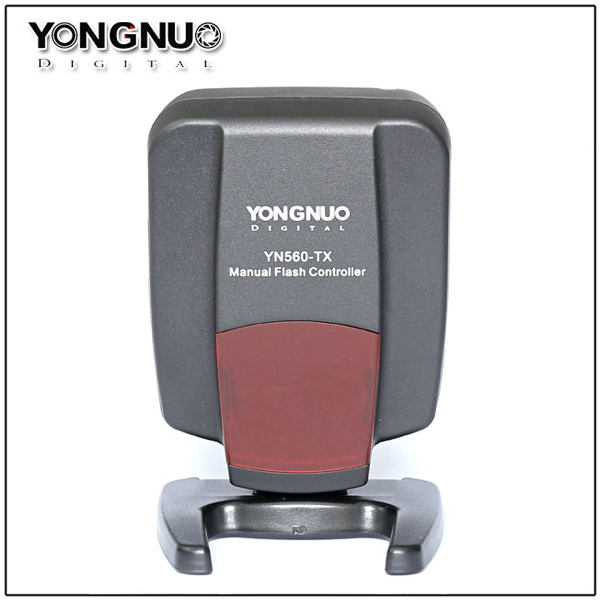

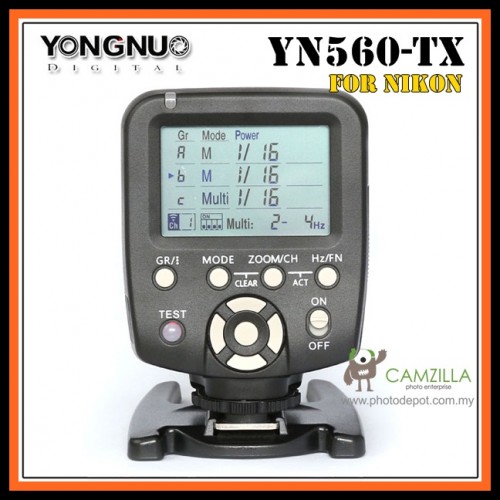

Yongnuo YN560-Tx Manual Flash Controller Transmitter for YN560 III & other YN Speedlites (Nikon)

Specification:

YN560-TX, Manual Flash Controller, made specially for Yongnuo YN-560 III made after January of 2013 year, but if you want to use it with our other Yongnuo flash speedlite, you just need the transceiver of Yongnuo RF-602, RF-603, RF-603 II, because YN560-TX has built-in wireless trigger system.

You can use it not only as flash controller function, but aslo use it as remote control function.

Main function:

FSK 2.4G wirelss controller
M / Multi Two mode
Remote Control of Flash output and Zoom per group, up to 6 groups, A/B/C/D/E/F
Zoom range: 24-105m
Shutter Interface: 2.5mm shutter interface
Compatible with YN-560 III, RF-602, RF-603, RF-603 II
16 Channels
Large and Clear Screen, user friendly interface
100 meters transmission Range
Battery Type: AA*2
Stand-by time: 120hours

Features:

1, Wireless Triggering Function
a, If you use it with YN-560 III, you need to activate the group function of YN-560 III with YN560-TX before you use them together, ( more detailed, you can see our manual. )


b, If you use it with other Yongnuo flash, like YN-560 II, YN-565EX, YN-568EX ( Manual mode ), you need a transceiver of Yongnuo RF-602, RF-603, RF-603 III.

2, Wireless Shutter Receiver Function

You can mount YN560-TX into Camera, use shutter release cable ( LS-2.5mm Series ) to connect it with your camera, and set RF-602, RF-603, RF-603 II in " transceiver " state, and then you can shutter release your camera

and you can also mount one flash into the hot shoe of flash traceiver, it also can be triggered synchronously.

Suit for:

--- Yongnuo YN-560 III made after January of 2013 year.

--- Yongnuo RF-602 transmitter, RF-603, RF-603 II transceiver

--- Yongnuo YN-560 II, YN-468 II, YN-565EX, YN-568EX in manual mode ( You need to use RF-602, RF-603, RF-603 II together. )

--- ALL Canon DSLR Camera.

--- ALL Nikon DSLR Camera ( Although the hot shoe for this item is for Canon camera, but you can still use other function in Nikon camera, the only difference is you can't wake up your flash when you mount Canon hot shoe into Nikon camera. )

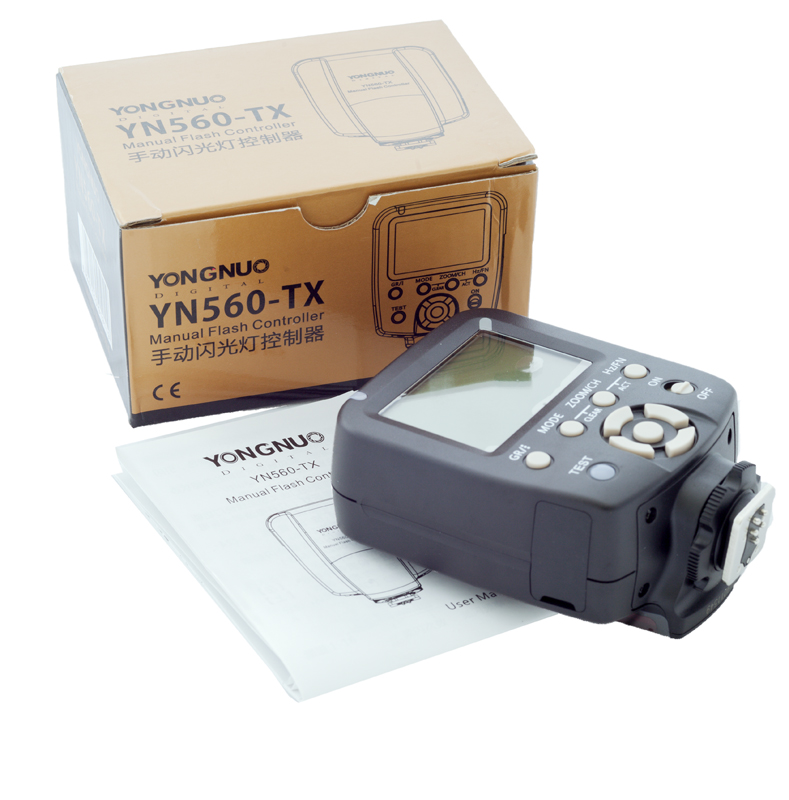

Packaged included:

1 x YN560-TX Flash Controller Canon Version
1 x Manual in English and Chinese
1 x Original box
