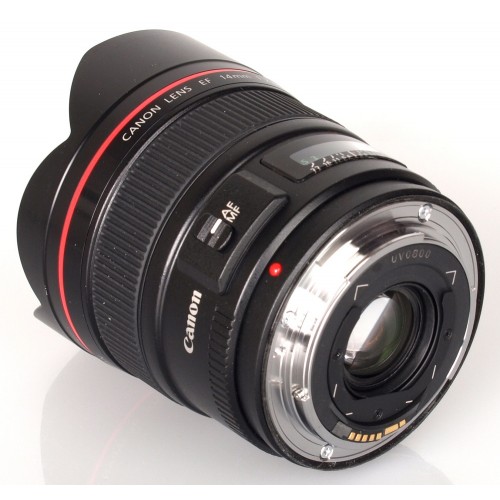

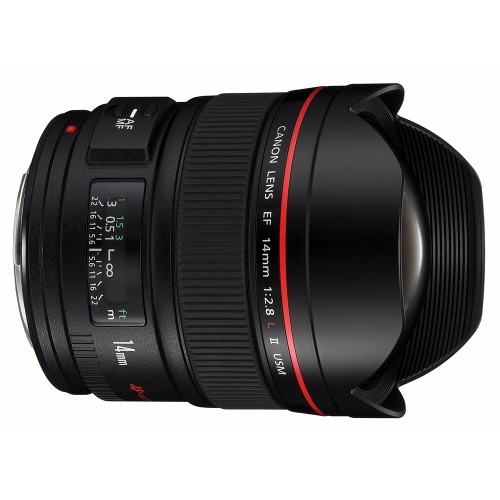

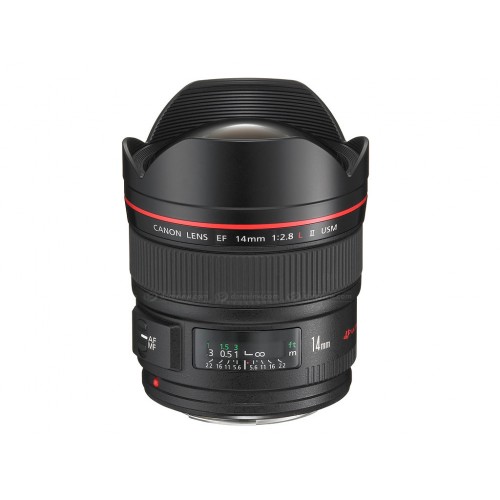

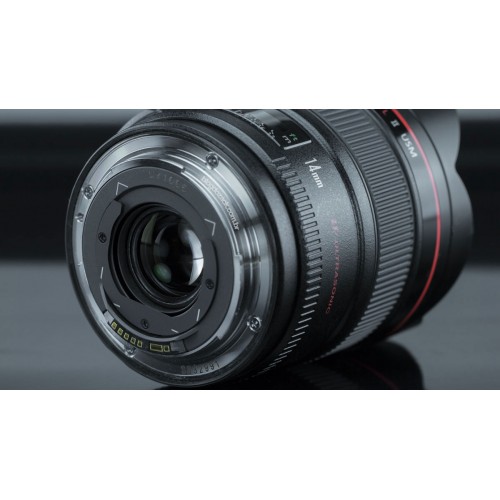

EF 14mm f/2.8L II USM

Ultra-wide angle lenses have always been in demand by architectural, corporate, and other top pro photographers. This new lens features completely redesigned optics including 2 high-precision Aspherical elements and two totally new UD-glass elements. The result is superior image quality: better contrast and sharpness at the outer edges, and a reduction in chromatic aberrations that can sometimes be seen with high-resolution digital SLRs. Its diagonal angle of view is an impressive 114°-anything larger would be a Fisheye lens. It has a built-in lens hood, and has been dust- and moisture- proofed. The lens uses a rear focusing system, high-speed CPU, and a powerful ring-type USM with revised electronics for faster, more responsive AF. This lens continues the proud tradition of superior clarity optics found in L-series Canon lenses.

High-performance super wide-angle prime lens with a spectacular angle of view of 114°

The exacting professional's ultra-wide-angle lens. Covers a breathtaking 114° field or view. UD and aspherical elements for paramount image quality. Great low light performance. High-speed CPU.

• Focal length and maximum aperture: 14 mm 1:2.8
• Lens construction: 14 elements in 11 groups Diagonal angle of view: 114°
• Focus adjustment: Ring-type USM, rear focusing system, full-time manual focus
• Closest focusing distance: 0.2 m/ 0.66 ft., 0.15 x magnification
• Filter size: Rear drop-in gelatin filter holder
• Max. diameter x length, weight: ø 80 x 94 mm, 645 g/ 3.2” x 3.7”, 1.4 lbs.

​

MTF Charts

1/640sec., f/11

Lens Construction
UD Lens
Aspherical Lens
