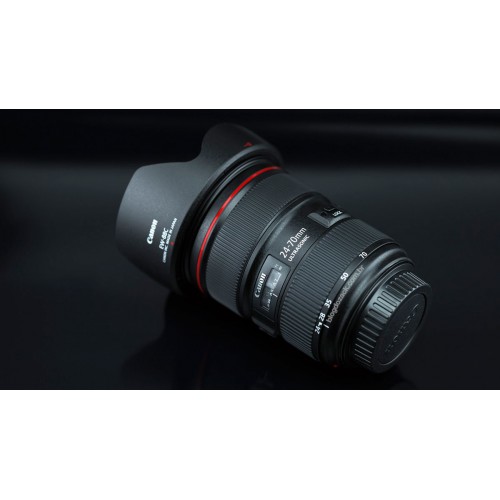

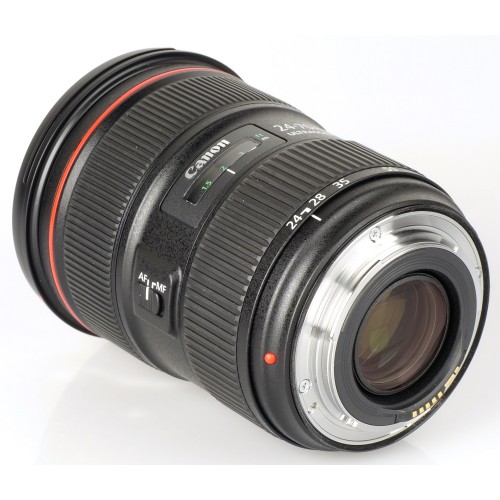

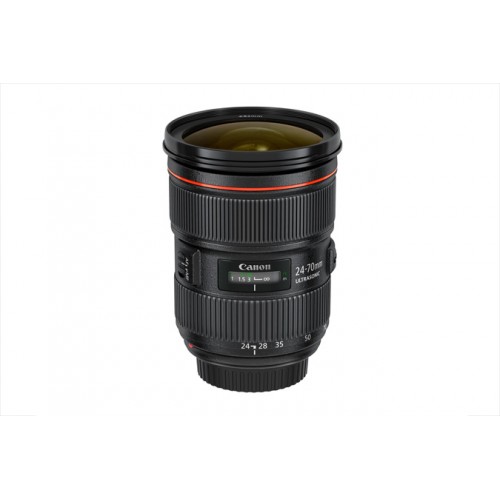

EF 24-70mm f/2.8L II USM

Meeting the ever-increasing demands on image quality that digital photography brings, the redesigned EF 24-70mm f/2.8L II USM is the latest update to the acclaimed L-Series of EF optics, re-establishing a new standard for superb optics, high-end durable construction and performance in professional zoom lenses. A standard focal length zoom lens, it features a large aperture throughout its focal length. Featuring the latest advances in optical lens design, it utilizes 1 Super UD lens element and 2 UD lens elements that help minimize chromatic aberration in the periphery at wide-angle as well as reduced color blurring around the edges of the subject. In addition, 2 types of aspherical lenses are combined to help reduce spherical aberration over the entire image area as well as through the full zoom range. Optimized lens coatings also help ensure exceptional color balance while minimizing ghosting. The lens is also equipped with a circular 9-blade diaphragm for beautiful, soft backgrounds. A ring-type USM and high-speed CPU with optimized AF algorithms enable silent and fast autofocusing. Built for the rigors of professional use as well as to meet the increased number of shots available with digital photography, it's constructed with improved dust sealing and water resistance while fluorine coatings on the front and rear lens surfaces help reduce soiling, smears and fingerprints. A zoom lock lever locks the zoom position at the wide end for safe transporting while attached to an EOS DSLR camera over the shoulder.

Professional, large-diameter standard zoom lens with further-enhanced image quality

A high-performance large-aperture L standard zoom lens with a wide focal-length range. 2 aspheric lens elements , a Super UD lens element , and 2 UD lens elements , magnification -type chromatic aberration at wider angles is corrected thus achieving superior image quality. Fast yet silent autofocus , include a full-time mechanical manual focus and a zoom lock.

• Focal length and maximum aperture: 24-70 mm 1:2.8
• Lens construction: 18 elements in 13 groups Diagonal angle of view: 84° - 34°
• Focus adjustment: Ring-type USM, inner focusing system, full-time manual focus
• Closest focusing distance: 0.38 m/ 1.2 ft., 0.21 x magnification
• Filter size: 82 mm Max. diameter x length, weight: ø 88.5x113 mm, 805 g/ 3.5” x 4.4”, 1.8 lbs.

​

Sample Image

MTF Charts


1/800sec., f/5.6, ISO 100, FL: 30mm

Lens Construction
Super UD Lens / UD Lens
Aspherical Lens
