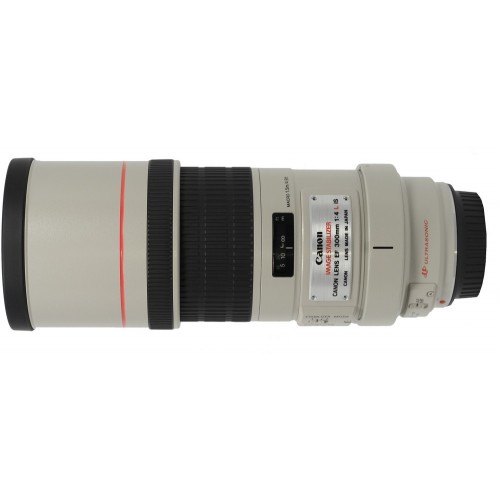

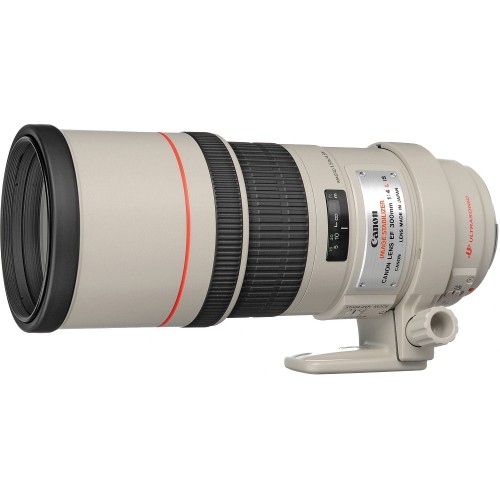

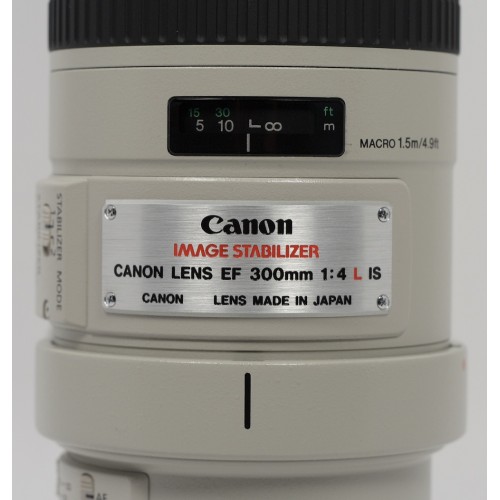

EF 300mm f/4L IS USM

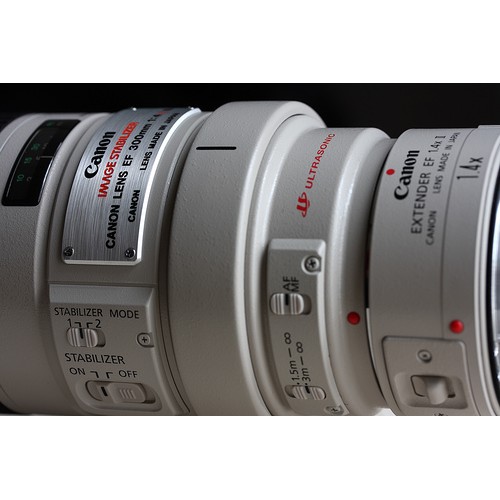

Compact L-series telephoto lens with an Image Stabilizer which compensates for camera shake with the equivalent effect of a shutter speed two stops faster. Two Image Stabilizer modes are provided: Stabilizer Mode 1 (the same mode featured on the EF 75-300mm f/4-5.6 IS USM) and the new Stabilizer Mode 2 which steadies the image during horizontal or vertical panning. Mode 2 detects the panning direction automatically. The closest focusing distance is 4.9 feet (1.5 m).

Compact telephoto prime lens built in with IS

Compact L-series telephoto lens. Compensates for camera shake with a two-mode Image Stabilizer equalling 2 shutter speed steps. 2 UD lens to completely eliminate secondary spectrum.

• Focal length and maximum aperture: 300 mm 1:4
• Lens construction: 15 elements in 11 groups (protective glass included)
• Diagonal angle of view: 8° 15’
• Focus adjustment: Ring-type USM, rear focusing system, full-time manual focus
• Closest focusing distance: 1.5 m/ 4.9 ft., 0.24 x magnification Filter size: 77 mm
• Max. diameter x length, weight: ø 90 x 221 mm, 1,190 g/ 3.5” x 8.7”, 2.6 lbs.
• Equipped with IS

​

MTF Chart

1/200sec., f/5.6, ISO 200, FL: 300mm

Lens Construction
UD Lens
