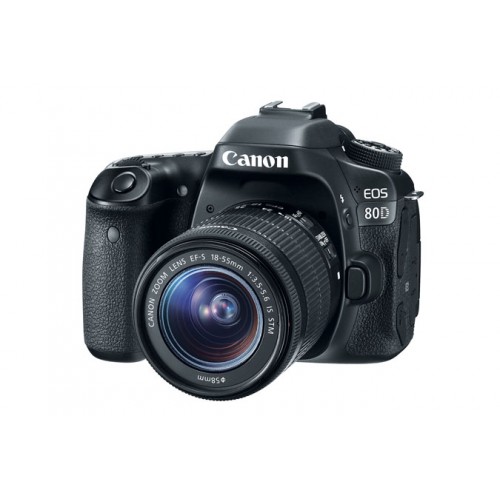

Canon EOS 80D ( Black ) Digital SLR Camera + KIT EF-M18-55mm f/3.5-5.6 IS STM

Brand: Canon
Product Code: CN-80D-1855
Availability: In Stock

Qty:

0 reviews | Write a review

Price: RM5,187.73

Add to Compare

Add to Wish List

Description Reviews (0)

Description

Enhanced Dual Pixel CMOS AF, 7.0fps Continuous Shooting - Capture Images One Step Ahead

The EOS 80D boasts a viewfinder coverage of approx. 100%. The newly-developed 45-point, all cross-type AF sensor and continuous shooting speed of up to 7.0fps makes it an excellent choice for capturing moving subjects. Movie shooting at a quality of up to Full HD 60p is also supported, and Dual Pixel CMOS AF, which makes it possible to achieve high speed AF during Live View shooting, has been enhanced to be compatible for use with all EF lenses. Remote shooting and image sharing with smart devices is also made simple as the camera supports Wi-Fi and NFC.

24 MP APS-C CMOS + DIGIC 6
45-point All Cross-Type AF
Dual Pixel CMOS AF

7.0fps High Speed Continuous Shooting with 24 MP APS-C CMOS sensor and DIGIC 6 Imaging Processor

EOS 80D

The EOS 80D’s 24.2MP, APS-C CMOS sensor realizes high resolution photo quality, where landscapes and still life shots are rendered with even greater detail, and skin tones and textures with even better precision. The tremendous volume of data generated undergoes high speed processing via the DIGIC 6 processor, enabling speeds of up to 7.0fps for photos (continuous shooting) and Full HD 60p/50p for movies to be achieved. ISO speed has also been enhanced up to a normal ISO of 16000 (12800 during movie shooting), and an expanded ISO of up to ISO 25600, allowing the capture of beautiful shots at fast shutter speeds, even in low light conditions. The focusing brightness range for viewfinder shooting has been increased up to EV -3, allowing improved AF performance in extremely low light scenes.

45-point All Cross-Type AF & Intelligent Viewfinder

EOS 80D

The AF sensor covers a large portion of the viewfinder and consists of 45 selectable points, all of which are cross-type. It enables precise AF tracking, even during 7.0fps high speed continuous shooting. 27 of the points can be used to focus with f/8, which means carrying out AF will be a pleasant experience even when using an extender. Combined with the 7,560-pixel RGB + IR metering system which tracks and detects colour, not only is the precision of the Scene Detection System improved and overall exposure clarity enhanced, you can also expect even more accurate focus on human subjects. Supplementing the APS-C camera is its viewfinder, which not only has approximately 100% coverage but also comes equipped with Intelligent Viewfinder. Thanks to the display of a variety of shooting information such as the electronic level, and a multiple aspect ratio shooting image area (including 1:1), viewfinder shooting is easier and more convenient than ever.

Enhanced Dual Pixel CMOS AF; Full HD 60p Movie Shooting

EOS 80D

Remarkably fast AF during Live View shooting is possible due to the enhanced Dual Pixel CMOS AF, now compatible with all EF/EF-S lenses and extenders*. As Servo AF is also supported during Live View shooting, you can take continuous shots of up to 5.0fps even while carrying out AF subject tracking. Full HD 60p/50p movie shooting is available, and you can film not only Time-lapse movies, but also HDR movies. In other words, you can capture beautiful scenes even in strong backlight conditions with high brightness contrast. There is also a digital zoom feature as well as new Creative filters for movie shooting. The Vari-angle LCD screen makes shooting from any position possible, and the smooth touchscreen operation allow you to shoot both stills and movies with ease.

*Except for MP-E and TS-E lenses.

Specifications for EOS 80D Kit (EF-S18-55 IS STM)

Type
Type	Digital, single-lens reflex, AF/AE camera with built-in flash
Recording media	SD/SDHC/SDXC memory cards * UHS-I cards supported
Image sensor size	Approx. 22.3 x 14.9mm
Compatible lenses	Canon EF lenses (including EF-S lenses) * Excluding EF-M lenses(35mm-equivalent angle of view is that of a lens with approx. 1.6x the focal length indicated.)
Lens mount	Canon EF mount
Image Sensor
Type	CMOS sensor
Effective pixels	Approx. 24.2 megapixels * Rounded off to the nearest 10,000th
Aspect ratio	3:2
Dust delete feature	Auto, Manual, Dust Delete Data appending
Recording System
Recording format	Design rule for Camera File System (DCF) 2.0
Image type	JPEG, RAW (14-bit Canon original), RAW+JPEG simultaneous recording possible
Pixels recorded	L (Large)	24.0 megapixels (6000 x 4000)
	M (Medium):	Approx. 10.6 megapixels (3984 x 2656)
	S1 (Small 1):	Approx. 5.9 megapixels (2976 x 1984)
	S2 (Small 2):	Approx. 2.5 megapixels (1920 x 1280)
	S3 (Small 3):	Approx. 350,000 pixels (720 x 480)
	RAW:	24.0 megapixels (6000 x 4000)
	M-RAW:	13.5 megapixels (4500 x 3000)
	S-RAW:	6.0 megapixels (3000 x 2000)
Aspect ratio	3:2, 4:3, 16:9, 1:1
Create / select a folder	Possible
File numbering	Continuous, Auto reset, Manual reset
Image Processing During Shooting
Picture Style	Auto, Standard, Portrait, Landscape, Fine Detail, Neutral,Faithful, Monochrome, User Defined 1 - 3
White balance	Auto (Ambience priority), Auto (White priority), Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom, Color temperature setting (approx. 2500 - 10000K), White balance correction, and White balance bracketing provided * Flash color temperature information transmission enabled
Noise reduction	Applicable to long exposures and high ISO speed shots
Automatic image brightness correction	Auto Lighting Optimizer provided
Highlight tone priority	Provided
Lens aberration correction	Peripheral illumination correction, Chromatic aberration correction, Distortion correction
Viewfinder
Type	Eye-level pentaprism
Coverage (by aspect ratio)	3:2 (vertical: approx. 100%, horizontal: approx. 100%),
	4:3 (vertical: approx. 100%, horizontal: approx. 97%),
	16:9 (vertical: approx. 97%, horizontal: approx. 100%),
	1:1 (vertical: approx. 100%, horizontal: approx. 96%)
	*With eyepoint at approx. 22mm.
Magnification	Approx. 0.95x (-1m-1 with 50mm lens at infinity)
Eye point	Approx. 22mm (from eyepiece lens center at -1m-1)
Diopric adjustment range	Approx. -3.0 - +1.0m-1 (dpt)
Focusing screen	Fixed
Grid display	Provided
Electronic level	Provided
Mirror	Quick-return type
Depth-of-field preview	Provided
Autofocus (for viewfinder shooting)
Type	TTL secondary image-registration, phase-difference detection with the dedicated AF sensor
AF points	45 (Cross-type AF point Max. 45 points) * Number of available AF points, Dual cross-type AFpoints, and cross-type AF points vary depending on the lens used and aspect ratio settings. * Dual cross-type focusing at f/2.8 with center AF point.(AF group: When Group A lenses are used)
Focusing brightness range	EV -3 - 18 (with the center AF point supporting f/2.8, One-Shot AF, at room temperature, ISO 100)
Focus operation	One-Shot AF, AI Servo AF, AI Focus AF, Manual focusing (MF)
AF area selection mode	Single-point AF (Manual selection), Zone AF (Manual selection of zone), Large Zone AF (manual selection of zone), 45-point automatic selection AF
AF point automatic selection conditions	AF points can be selected automatically using information on colors equivalent to skin tones
AI Servo AF characteristics	Tracking sensitivity, Acceleration / deceleration tracking, AF point auto switching
AF fine adjustment	AF Microadjustment (All lenses by same amount or Adjust by lens)
AF-assist beam	Small series of flashes fired by built-in flash
Exposure Control
Metering mode	63-zone TTL open-aperture metering using 7560-pixel RGB plus IR metering sensor Evaluative metering (linked to all AF points) Partial metering (approx. 6.0% of viewfinder at center) Spot metering (approx. 3.8% of viewfinder at center) Center-weighted average metering
Metering brightness range	EV 1 - 20 (at room temperature, ISO 100)
Shooting mode	Basic Zone modes	Scene Intelligent Auto, Flash Off, Creative Auto, Special scene modes (Food, Kids, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control, Portrait, Landscape, Close-up, Sports), Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Toy camera effect,Miniature effect, Water painting effect, HDR art standard,HDR art vivid, HDR art bold, HDR art embossed)
	Creative Zone modes:	Program AE, Shutter-priority AE, Aperture-priority AE,Manual exposure, Bulb exposure, Custom shootingmode
ISO speed (Recommended exposure index)	Basic Zone modes*:	ISO 100 - ISO 6400 set automatically
	* Handheld Night Scene:	ISO 100 - ISO 12800 set automatically, Landscape: ISO 100 - ISO 1600 set automatically
	P, Tv, Av, M, B: ISO Auto, ISO 100 - ISO 16000 set manually (1/3- and whole-stop increments), and ISO expansion to H (equivalent to ISO 25600)
ISO speed settings	Range for stills, Auto range, and Minimum shutter speed for auto settable
Exposure compensation	Manual:	±5 stops in 1/3- or 1/2-stop increments
	AEB:	±3 stops in 1/3- or 1/2-stop increments (can be combined with manual exposure compensation)
AE lock	Auto:	Applied in One-Shot AF with evaluative metering when focus is achieved
	Manual:	With AE lock button
Anti-flicker	Possible
Interval timer	Shooting interval and shot count settable
Bulb timer	Bulb exposure time settable
HDR Shooting
Dynamic range adjustment	Auto, ±1, ±2, ±3
Effects	Natural, Art standard, Art vivid, Art bold, Art embossed
Auto image alignment	Provided
Multiple Exposures
Number of multiple exposures	2 - 9 exposures

Multiple-exposure control	Additive, Average
Shutter
Type	Electronically-controlled, focal-plane shutter
Shutter speed	1/8000sec. to 30sec. (total shutter speed range; available range varies by shooting mode), Bulb, X-sync at 1/250sec.
Drive System
Drive mode	Single shooting, High-speed continuous shooting, Low-speed continuous shooting, Silent single shooting, Silent continuous shooting, 10-sec. self-timer/remote control, 2-sec. self-timer/remote control
Continuous shootingspeed	High-speed continuous shooting:	Max. approx. 7.0 shots/sec.* * Max. approx. 5.0 shots/sec. during Live View shooting or when [Servo AF] is set.
	Low-speed continuous shooting:	Max. approx. 3.0 shots/sec.
	Silent continuous shooting:	Max. approx. 3.0 shots/sec.
Max. burst	JPEG Large/Fine:	Approx. 77 shots (approx. 110 shots)
	RAW:	Approx. 20 shots (approx. 25 shots)
	RAW+JPEG Large/Fine:	Approx. 20 shots (approx. 22 shots)
	* Figures are based on Canon’s testing standards (3:2 aspect ratio, ISO 100 and Standard Picture Style) using an 8GB card.
	* Figures in parentheses apply to an UHS-I compatible 16GB card based on Canon’s testing standards.
Flash
Built-in flash	Retractable, auto pop-up flash Guide No.: Approx. 12 / 39.4 (ISO 100, in meters / feet) Flash coverage: Approx. 17mm lens angle of view Recharge time: Approx. 3sec.
External Speedlite	Compatible with EX-series Speedlites
Flash metering	E-TTL II autoflash
Flash exposure compensation	±3 stops in 1/3- or 1/2-stop increments
FE lock	Provided
PC terminal	None
Flash control	Built-in flash function settings, external Speedlite function settings, external Speedlite Custom Function settings Wireless flash control via optical transmission possible
Live View Shooting
Focus method	Dual Pixel CMOS AF system
AF method	Face+Tracking, FlexiZone-Multi, FlexiZone-Single Manual focus (approx. 5x / 10x magnification possible)
AF operation	One-Shot AF, Servo AF
Focusing brightness range	EV 0 - 18 (at room temperature, ISO 100)
Metering mode	Evaluative metering (315 zones), Partial metering (approx. 6.1% of Live View screen), Spot metering (approx. 2.6% of Live View screen), Center-weighted average metering
Metering brightness range	EV 0 - 20 (at room temperature, ISO 100)
Exposure compensation	±3 stops in 1/3-stop or 1/2-stop increments
Creative filters	Provided
Silent LV shooting	Provided (Mode 1 and 2)
Touch shutter	Provided
Grid display	Three types
Movie Shooting
Recording format	MOV/MP4
Movie	MPEG-4 AVC / H.264 Variable (average) bit rate
Audio	MOV: Linear PCM, MP4: AAC
Recording size and frame rate	[MOV]
	Full HD (1920x1080):	29.97p / 25.00p / 23.98p
	[MP4]
	Full HD (1920x1080):	59.94p / 50.00p / 29.97p / 25.00p / 23.98p
	HD (1280x720):	59.94p / 50.00p / 29.97p / 25.00p
Compression method	[MOV] :	ALL-I (For editing / I-only)
	[MP4] :	IPB (Standard), IPB (Light)
Bit rate	[MOV]
	Full HD (29.97p / 25.00p / 23.98p) / ALL-I:	Approx. 90Mbps
	[MP4]
	Full HD (59.94p / 50.00p) / IPB (Standard) :	Approx. 60Mbps
	Full HD (29.97p / 25.00p / 23.98p) / IPB (Standard) :	Approx. 30Mbps
	Full HD (29.97p / 25.00p) / IPB (Light) :	Approx. 12Mbps
	HD (59.94p / 50.00p) / IPB (Standard) :	Approx. 26Mbps
	HD (29.97p / 25.00p) / IPB (Light) :	Approx. 4Mbps
	HDR Movie Shooting :	Approx. 30Mbps
Focus method	Dual Pixel CMOS AF system
AF method	Face+Tracking, FlexiZone-Multi, FlexiZone-Single Manual focus (approx. 5x / 10x magnification possible)
Movie Servo AF	Provided * Movie Servo AF customizable
Digital zoom	Approx. 3 - 10x
Focusing brightness range	EV 0 - 18 (at room temperature, ISO 100)
Metering mode	Center-weighted average or Evaluative metering
Metering brightness range	EV 0 - 20 (at room temperature, ISO 100)
Exposure control	Autoexposure shooting (Program AE for movie shooting) and manual exposure
Exposure compensation	±3 stops in 1/3- or 1/2-stop increments
ISO speed (Recommended exposure index)	For autoexposure shooting:	ISO 100 - ISO 12800 set automatically. In Creative Zone modes, the upper limit is expandable to H (equivalent to ISO 25600).
	For manual exposure shooting:	ISO Auto (ISO 100 - ISO12800 set automatically), ISO 100 - ISO 12800 set manually (1/3- and whole-stop increments), expandableto H (equivalent to ISO 25600)
ISO speed settings	Range for movie shooting settable
HDR Movie Shooting	Possible
Creative filters for movies	Memory, Dream, Old Movies, Dramatic B&W, Miniature effect movie
Video snapshots	Settable to 2sec. / 4sec. / 8sec.
Sound recording	Built-in stereo microphones, external stereo microphone terminal provided Sound-recording level adjustable, wind filter provided, attenuator provided
Headphones	Headphone terminal provided, sound volume adjustable
Grid display	Three types
Time-lapse movie	Shooting interval and number of shots settable, Required shooting time period, playback length, and remaining card capacity viewable
Still photo shooting	Not possible during movie shooting
LCD Monitor
Type	TFT color, liquid-crystal monitor
Monitor size and dots	Wide 7.7cm (3.0in.) (3:2) with approx. 1.04 million dots
Brightness adjustment	Manual (7 levels)
Electronic level	Provided
Interface languages	25
Touch screen technology	Capacitive sensing
Feature guide / Help	Displayable
Playback
Image display format	Single-image display (without shooting information), Single-image display (with basic information), Single-Image display (Shooting information displayed: Detailed information, Lens / histogram, White balance, Picture Style 1, Picture Style 2, Color space / noise reduction, Lens aberration correction), Index display (4 / 9 / 36 / 100 images)
Highlight alert	Overexposed highlights blink
AF point display	Provided (may not be displayed depending on shooting conditions)
Grid display	Three types
Zoom magnification	Approx. 1.5 - 10x
Image browsing methods	Single image, jump by 10 or 100 images, by shooting date, by folder, by movies, by stills, by rating
Image rotation	Possible
Image protection	Possible
Rating	Provided
Movie playback	Enabled (LCD monitor, HDMI), built-in speaker
Slide show	All images, by date, by folder, by movies, by stills, by rating
Background music	Selectable for slide shows and movie playback
Post-Processing of Images
In-camera RAW image processing	Brightness adjustment, White balance, Picture Style, Auto Lighting Optimizer, High ISO speed noise reduction, JPEG image-recording quality, Color space, Peripheral illumination correction, Distortion correction, Chromatic aberration correction
Resize	Provided
Creative filters	Grainy B/W, Soft focus, Fish-eye effect, Art bold effect, Water painting effect, Toy camera effect, Miniature effect
Print Ordering
DPOF	Version 1.1 compliant
Customization Features
Custom Functions	26
My Menu	Up to 5 screens can be registered
Custom shooting mode	Register under Mode Dial’s C1 or C2
Copyright information	Entry and appending possible
Interface
DIGITAL terminal	Computer communication (Hi-Speed USB equivalent), GPS Receiver GP-E2, Connect Station CS100 connection
HDMI mini OUT terminal	Type C (Auto switching of resolution), CEC-compatible
External microphone IN terminal	3.5mm diameter stereo mini-jack
Remote control terminal	For Remote Switch RS-60E3
Wireless remote control	Compatible with Remote Controller RC-6
Eye-Fi card	Compatible
Power
Battery	Battery Pack LP-E6N / LP-E6, quantity 1 * AC power usable with household power outlet accessories. *With Battery Grip BG-E14 attached, AA / R6 batteries can be used.
Battery information	Remaining capacity, Shutter count, Recharge performance, and Battery registration possible
Number of possible shots (Based on CIPA testing standards, with 50% flash use)	With viewfinder shooting:	Approx. 960 shots at room temperature (23°C / 73°F), approx. 860 shots at low temperatures (0°C / 32°F)
	With Live View shooting:	Approx. 300 shots at room temperature (23°C / 73°F), approx. 270 shots at low temperatures (0°C / 32°F)
Movie shooting time	Total approx. 1hr. 50 min. at room temperature (23°C / 73°F) Total approx. 1hr. 40 min. at low temperatures (0°C / 32°F) *With a fully-charged Battery Pack LP-E6N.
Dimensions and Weight
Dimensions (W x H x D)	Approx. 139.0 x 105.2 x 78.5mm / 5.47 x 4.14 x 3.09in.
Weight	Approx. 730g / 25.75oz. (Based on CIPA Guidelines) Approx. 650g / 22.93oz. (Body only)
Operation Environment
Working temperature range	0°C - 40°C / 32°F - 104°F
Working humidity	85% or less
Wireless Communications
Standards compliance	IEEE 802.11b/g/n
Transmission method	DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g/n)
Transmission range	Approx. 15m / 49.2ft. * When connected to a smartphone * With no obstructions between the transmitting and receiving antennas and no radio interference
Transmission frequency (central frequency)	Frequency:	2412 - 2462 MHz
	Channels:	1 - 11 ch
Connection method	Camera access point mode, infrastructure* * Wi-Fi Protected Setup supported
Security	Authentication method: Open system, Shared key, WPA/ WPA2-PSK Encryption: WEP, TKIP, AES
NFC connection	For communication with smartphones or connection to Connect Station
Wi-Fi Functions
Connection to smartphones	Images can be viewed, controlled, and received using a smartphone. Remote control of the camera using a smartphone is possible. Images can be sent to a smartphone.
Transfer images between cameras	Transferring one image, Transferring selected images, Transferring resized images
Connect to Connect Station	Images can be sent to and saved on Connect Station.
Remote operation using EOS Utility	Remote control functions and image viewing functions of EOS Utility can be used wirelessly.
Print from Wi-Fi printers	Images to be printed can be sent to a printer supporting Wi-Fi.
View images using a media player	Images can be viewed using a DLNA-compatible media player
Send images to a Web service	Images in the camera or links to images can be sent to registered Web services
Battery Pack LP-E6N
Type	Rechargeable lithium-ion battery
Rated voltage	7.2V DC
Battery capacity	1865mAh
Working temperature range	0°C - 40°C / 32°F - 104°F

Working humidity	85% or less
Dimensions (W x H x D)	Approx. 38.4 x 21.0 x 56.8mm / 1.5 x 0.8 x 2.2in.
Weight	Approx. 80g / 2.8oz. (excluding protective cover)
Battery Charger LC-E6
Compatible battery	Battery Pack LP-E6N / LP-E6
Recharging time	Approx. 2hr. 30min.
Rated input	100 - 240V AC (50 / 60 Hz)
Rated output	8.4V DC / 1.2A
Working temperaturerange	5°C - 40°C / 41°F - 104°F
Working humidity	85% or less
Dimensions (W x H x D)	Approx. 69.0 x 33.0 x 93.0mm / 2.7 x 1.3 x 3.7in.
Weight	Approx. 115g / 4.1oz.
Battery Charger LC-E6E
Compatible battery	Battery Pack LP-E6N / LP-E6
Power cord length	Approx. 1m / 3.3ft.
Recharging time	Approx. 2hr. 30min.
Rated input	100 - 240V AC (50 / 60 Hz)
Rated output	8.4V DC / 1.2A
Working temperature range	5°C - 40°C / 41°F - 104°F
Working humidity	85% or less
Dimensions (W x H x D)	Approx. 69.0 x 33.0 x 93.0mm / 2.7 x 1.3 x 3.7in.
Weight	Approx. 110g / 3.9oz. (excluding power cord)

•	All the data above is based on Canon’s testing standards and CIPA (Camera & Imaging Products Association) testing standards and guidelines.
•	Dimensions and weight listed above are based on CIPA Guidelines (except weight for camera body only).
•	Product specifications and the exterior are subject to change without notice.
•	If a problem occurs with a non-Canon lens attached to the camera, consult the respective lens manufacturer.
