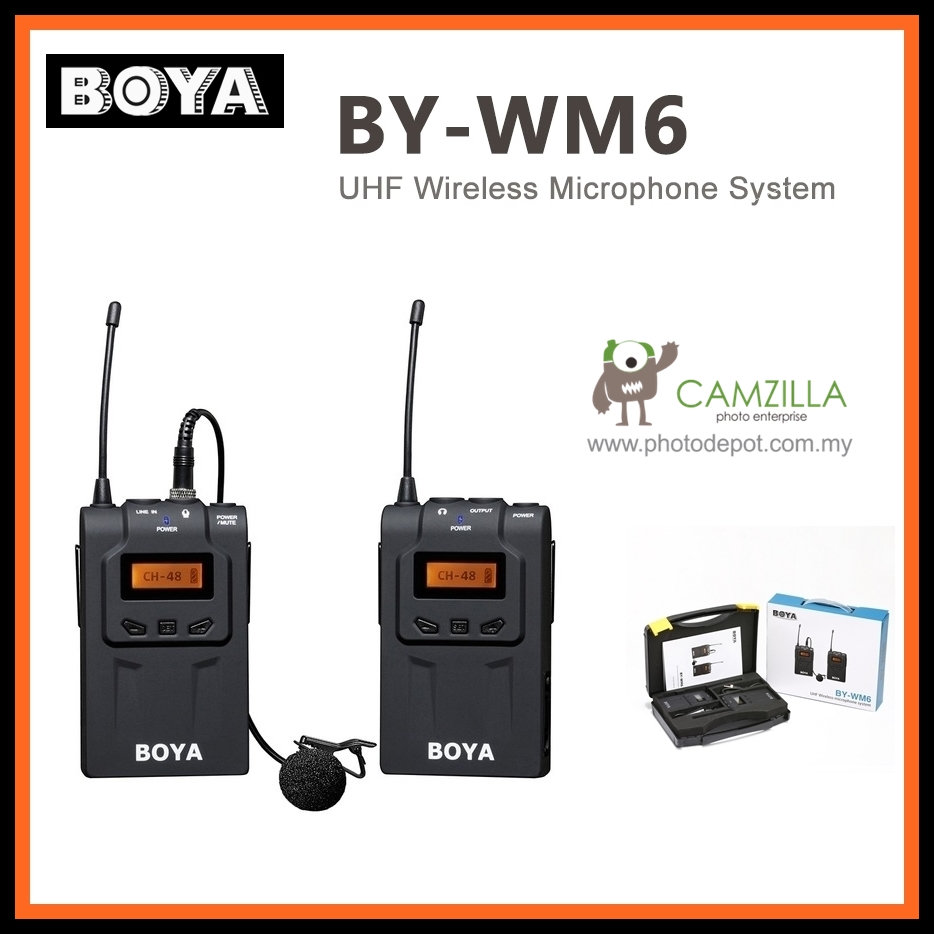

BOYA BY-WM6 UHF Professional Omni-Directional Lavalier Wireless Microphone System for ENG EFP DSLR Video

Key Features

Overview
The BOYA BY-WM6 is an UHF wireless microphone system, designed for ENG, EFP, DSLR video, and other professional applications.The receiver and the transmitter are lightweight and simple menu for easy operation.

Features:
. Ideal for ENG/EFP, DSLR Video
. Compander for High-quality and Clear sound
. 48 UHF Channels
. Mic and Line-in
. Easy to use, with display
. Selectable Mute function
. Camera-Mountable Receiver
. Monitoring sound by headphone output (Receiver)
. Includes Omni-Directional Lavalier Mic

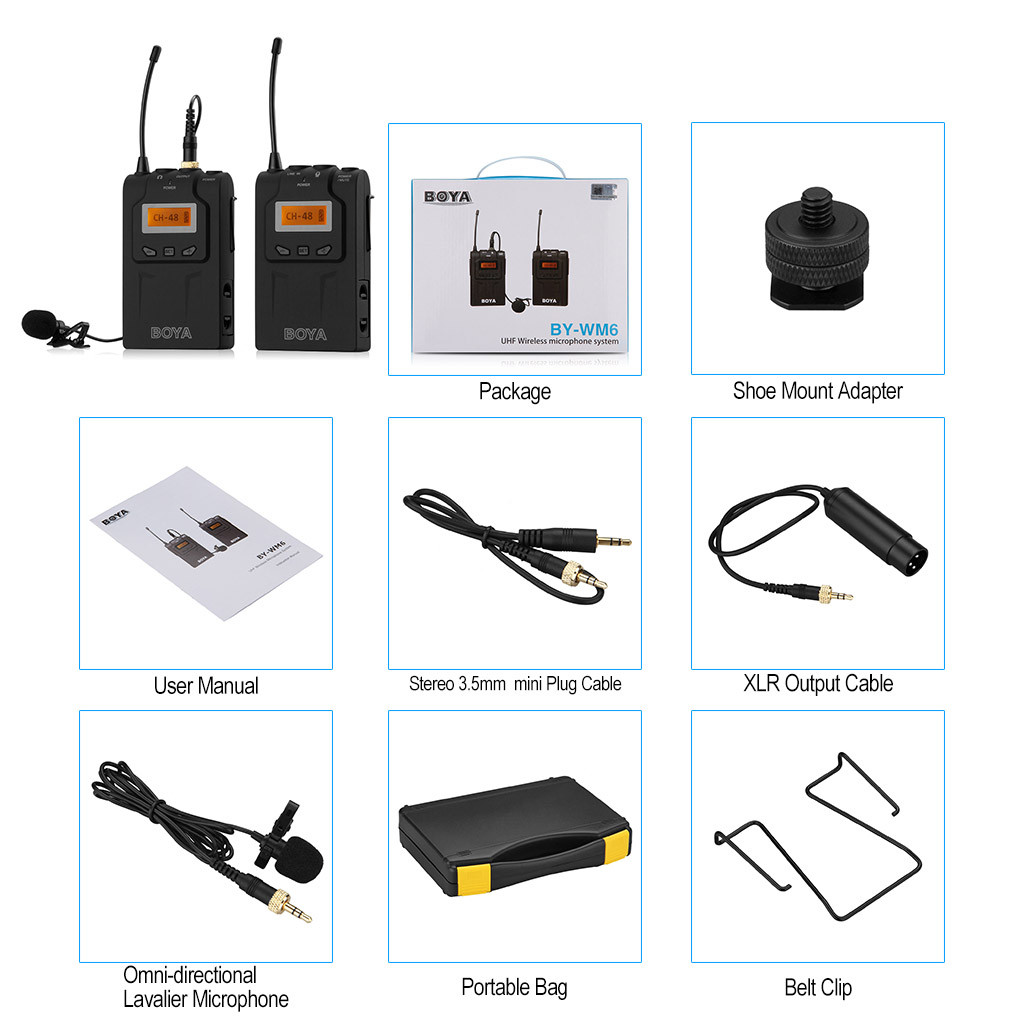

. Includes XLR output cable, Stereo mini plug cable
. More than 6 Hours Continuous operation
. Operation range can reach up to 100m(300')(without obstacle)
. Power Supply: Two (2) AA batteries

System
Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 584 MHz-608 MHz
Channels: 48
Frequency response: 60Hz-15 KHz+/-3 dB
Operation range: 100m (300')(without obstacle)
Operating temperature: 14° F to 122° F (-10℃ to +50℃)
Storage temperature: 14° F to 131° F (-10℃ to +55℃)

Transmitter
RF output power: 20 mW
Antenna: Flexible
Spurious emission: 250 nW or less
Audio input connector: 3.5mm mini jack
Audio input level: 600 mV-2000 mV
Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
Input frequency range: 20 Hz-20 KHz
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2” x 2.6” x 1.1”
(10.6 x 6.7 x 2.9 cm)
Weight: 95g (3.4 oz) without batteries

Receiver
Antenna: Flexible
Audio input connector: 3.5mm mini jack
Signal-to-noise ratio: 80 dB
Distortion: 0.8% (-60 dBV, 1 KHz input)
Earphone output level: 60 mW, 32 Ohms/1KHz
Audio output level: 120 mV
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2” x 2.6” x 1.1”
(10.6 x 6.7 x 2.9 cm)
Weight: 98g (3.5 oz) without batteries

Lavalier Microphone
Transducer: Back electret Condenser
Polar pattern: Omni-directional
Frequency Range: 35Hz ~ 18 KHz
Signal / Noise：74dB SPL
Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
Connector: 3.5mm locking mini plug
Length: 1.2m (4')

Specifications
