Saramonic UwMic9 96-Channel UHF Wireless Lavalier Microphone System Two Transmitters and One Receiver for DSLR & Camcorder Video

Descriptions

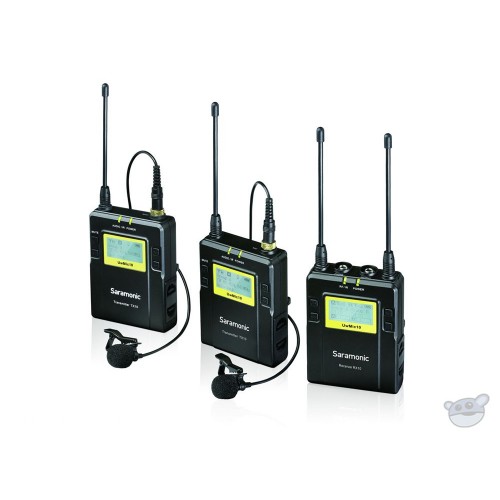

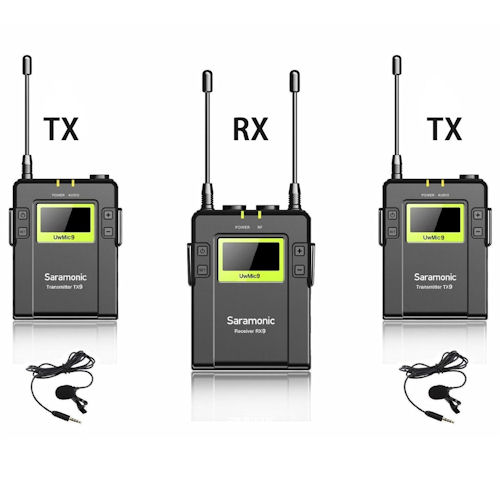

The Saramonic UWMIC9 Dual UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording. The system includes a camera-mountable, wireless receiver, 2 x wireless body-pack transmitter and clip-on lavalier mic sets.

• Reliable, broadcast-quality audio

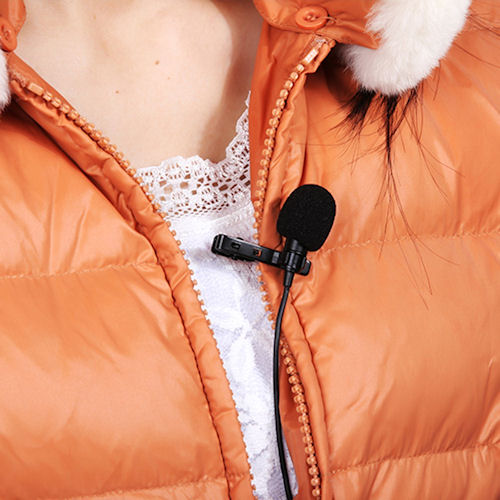

• Wireless transmitter with lavalier microphone x 2
• UHF frequency range: 514MHz - 596MHz
• 96 selectable channels in 2 groups
• Operates over 330' (100m) in open areas. Or 200' (60m) with obstacles
• Easy to read LCD displays

Receiver:
The UWMIC10's RX-9 receiving unit is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

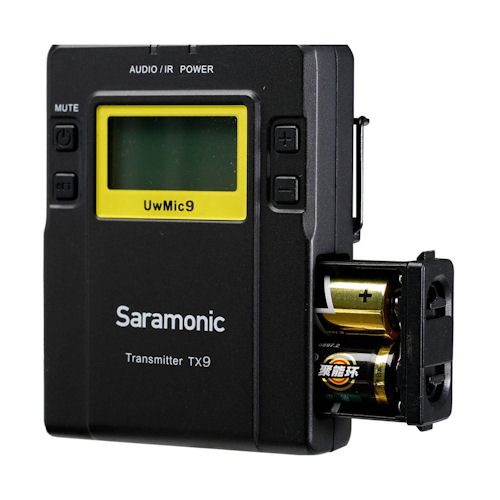

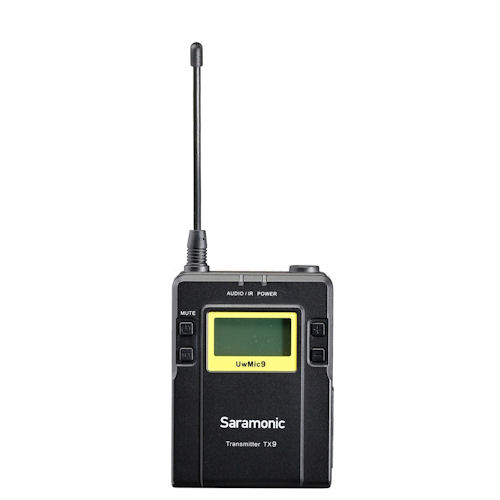

Transmitter x 2:
The UWMIC10's TX-9 compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.

Specifications

Channels: 96 channels

Groups: A and B groups

Oscillator Type: PLL synthesizer

Output: 3.5mm mini jack

Antenna: 1/4" wire antenna

Audio Output Level: -60 dBV

Headphone Output Level: 30mW (16 ohm)

Frequency Range: 514 MHz - 596 MHz

Sensitivity: -95 dBm

Signal to Noise Ratio: 70 dB or more

Voice Delay: 12 ms

Reference Deviation: +/- 5 kHz

Frequency Response: 40 Hz to 18 kHz (+/- 3dB)

Distortion: 0.5% or less

Spur Suppression: -60 dB

Weight: 218.7g (w/out batteries)

Battery: 2 AA size batteries

Dimensions: 170.9 x 63.m x 30.0 mm

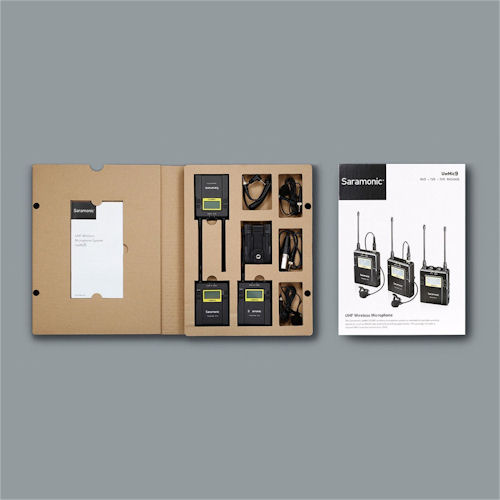

Includes

• 1 x Body-packtyransmitter (RX9)
• Two camera-mountable receiver (TX9)
