Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras

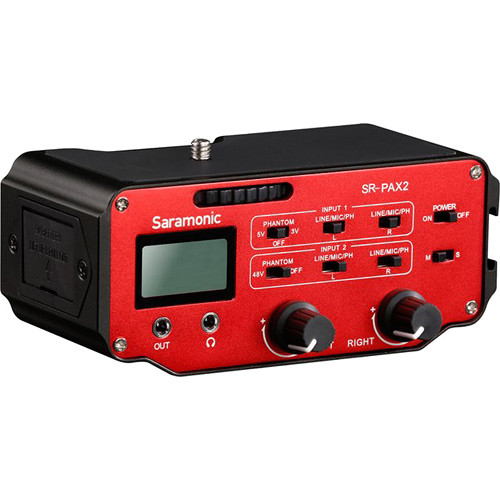

The SR-PAX2 from Saramonic is an active 2-channel audio adapter designed to provide a compact solution for recording two signals to any DSLR or camcorder that has a standard mounting shoe and a built-in audio jack. It features left and right gain controls and meters, supplies phantom power, and is powered by a 9V battery (available separately).

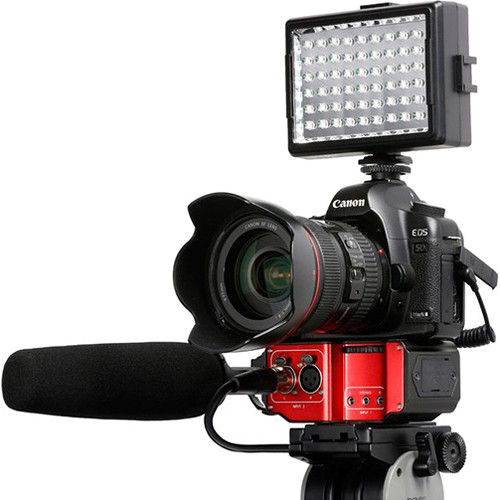

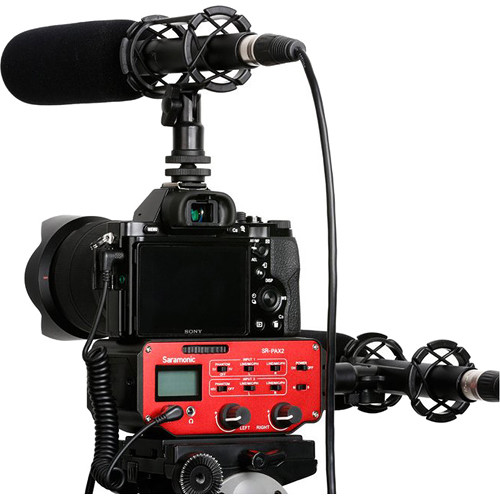

It attaches to the base of a camera, and can be mounted on a tripod or case. Connect inputs via two mono 3.5mm (1/8") jacks, the single stereo 3.5mm (1/8") jack, or two mini-XLR jacks (mini-XLR to XLR provided). Route the stereo 3.5mm (1/8") output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch. A dedicated stereo 3.5mm (1.8") headphone output allows quick monitoring of the mic signals.

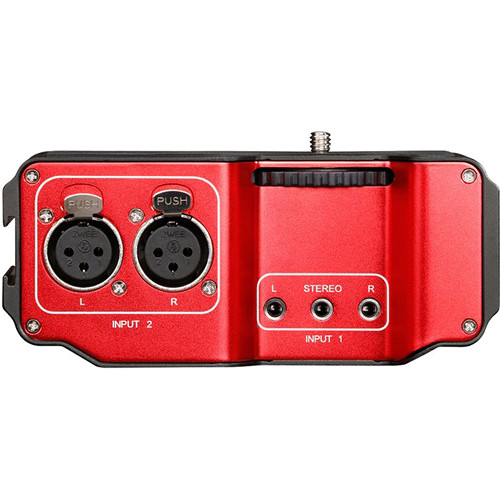

• Two 1/8" (3.5 mm) stereo line/mic inputs
• Two mini XLR microphone input (mini-XLR to standard-XLR cable included)
• One 1/8” (3.5mm) stereo line output to phone
• One 1/8” (3.5mm) headphone monitor output
• Volume control knob
• Independent input control switch
• Independent L/R level meters
• Independent phantom power control for inputs


  PRODUCT HIGHLIGHTS

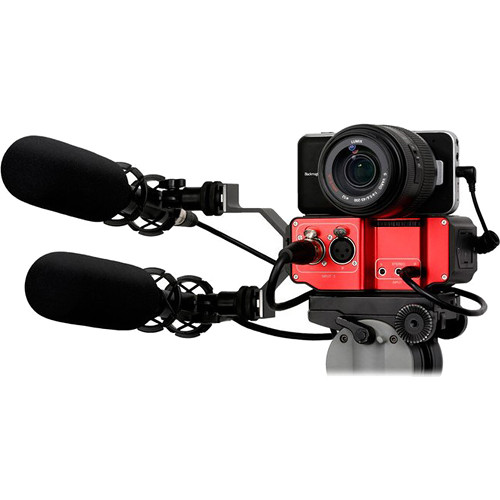

• Combine Two Mics to One Stereo Output
• Sum a Stereo Input to a Mono Output
• Supplies Phantom Power
• 3.5mm (1/8") and Mini-XLR Inputs
• 3.5mm (1/8") Stereo Line Output
• Dedicated 3.5mm Stereo Headphone Output
• Left and Right Gain Controls
• Left and Right Level Meters
• Mono/Stereo Output Mode Switch
• Powered via 9V Battery


  Saramonic SR-PAX2 specs

  Frequency Response	20 Hz to 20 KHz, +/-0.5 dB
  THD	Less than 0.01% @ 1 kHz, -30 dBu input
  SNR	80 dB @ 1 kHz, -30 dBu input
  Input Gain	Input 1: Line: 0 dB Mic/Phone: 20 dB Input 2: Line: 0 dB Mic/Phone: 20 dB
  Phantom Power	Input 1: 5 V/3 V power supply Input 2: 48 V power supply
  Level Meters	-18 dB to +3 dB in 3 dB increments
  Power Requirements	9 V alkaline or lithium battery
  Battery Duration	5 hours, typical with alkaline battery 3 hours, typical with lithium battery
  Dimensions (L x W x H)	5.4 x 3.2 x 2.5" / 136.0 x 80.5 x 62.5 mm
  Weight	13.5 oz / 382.7 g
