BOYA BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System for DSLR Canon Nikon (576.4 to 599.9 MHz, 568.6 to 592 MHz)

Brand: BOYA
Product Code: BOYA BY-WM8 Pro-K2
Availability: In Stock

Qty:

0 reviews | Write a review

Price: RM669.00

Add to Compare

Add to Wish List

Description Reviews (0)

Description

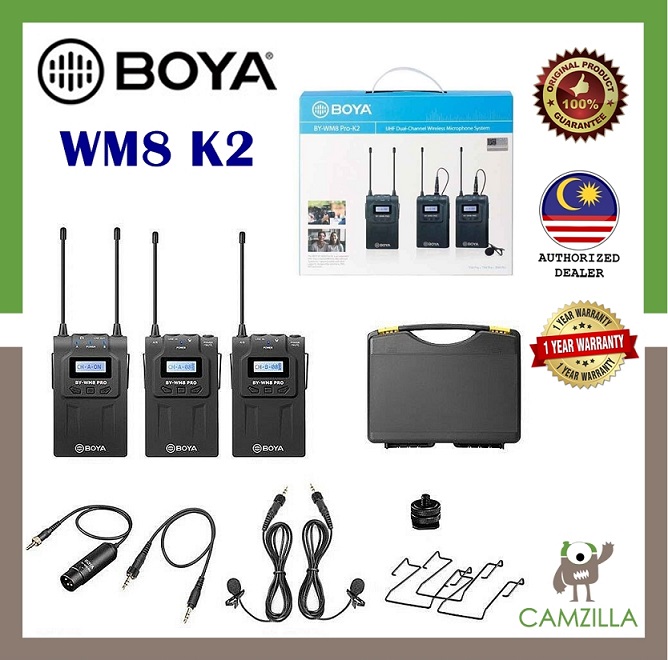

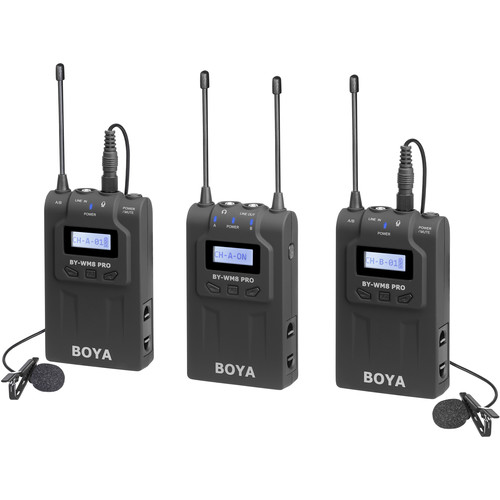

he BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System from BOYA includes a UHF dual-channel wireless receiver, two wireless bodypack transmitters, two omnidirectional lavalier microphones, two microphone clips and foam windscreens, a shoemount adapter, single 1/8" to XLR output cable, single 1/8" to 1/8" output cable, and carrying case. This wireless system can be used to capture audio with two subjects simultaneously for interview, electronic news gathering (ENG), electronic field production (EFP), film, business, and educational applications.

Featuring an easy-to-read LCD display, wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry, the BY-WM8 Pro-K2 system is equipped with 48 selectable UHF channels and offers broadcast-quality sound. Other features include: selectable stereo and mono modes, mute function, LCD-locked function, receiver headphone output for monitoring, and 300' operation range.

Furthermore, the system is powered by AA batteries (sold separately), which offer up to 6 hours of continuous operation. The BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System is built with easy and flexible wireless synchronization between transmitter and receiver via infrared, so you will always find a clear channel to transmit on. The user-friendly LCD menu screen is quick and easy to navigate, which makes it suitable for quick, clear, and easy operation.

*Digital companding

*Up to 48 selectable channels

*Dual-channel receiver

*Up to 32 MHz of transmission bandwidth

*Easy and flexible wireless synchronization between transmitter and receiver via infrared

*User-friendly menu operation

*Muting function

*Locked plugs avoid accidental disconnection

*Transmission range up to 300'

BOYA BY-WM8 PRO Specs

System

Oscillator Type	PLL Synthesized Control Oscillator
Carrier Frequency Range	576.4 to 599.9 MHz (Transmitter: A) 568.6 to 592.1 MHz (Transmitter: B)
Channels	48
Frequency Response	40 Hz to 18 kHz (±3 dB)
Operation Range	300' / 100 m (without Obstacle)
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	14 to 131°F / -10 to 55°C

Transmitter

RF Output Power	≤ 10 mW
Antenna	1/4 Wire Antenna
Spurious Emission	250 nW or Less
Audio Input Connectors	1/8" / 3.5 mm Mic Input 1/8" / 3.5 mm Line-Level Input
Reference Input Level	-60 dBV (Mic Input, 0 dB Attenuation)
Reference Deviation	±5 kHz (-60 dBV, 1 kHz Input)
Input Frequency Range	20 Hz to 20 kHz
Distortion	0.5% or Less
Power Supply	2 x AA Size Batteries
Operation Time	Aprox 6 Hours
Dimensions (H x W x L)	8.2 x 2.6 x 1.1" / 20.8 x 6.7 x 2.9 cm
Weight	2.8 oz / 80.0 g (without Batteries)

Receiver

Antenna	1/4 Wire Antenna
Audio Output Connectors	1/8" / 3.5 mm Line Out 1/8" / 3.5 mm Headphones Out
Signal to Noise Ratio	70 dB or More
Distortion	0.5% or Less
Headphone Output Level	30 mW (16 Ohms)
Audio Output Level	-60 dBV
Power Supply	2 x AA Size Batteries
Operation Time	About 4 Hours
Dimensions (H x W x L)	8.2 x 2.6 x 1.1" / 20.8 x 6.7 x 2.9 cm
Weight	3.2 oz / 90.0 g (without Batteries)

Lavalier Microphone Specs

Transducer	Back Electret Condenser
Polar Pattern	Omnidirectional
Frequency Range	35 Hz to 18 kHz
Signal / Noise	74 dB SPL
Sensitivity	-30 dB ±3 dB / 0 dB=1 V/Pa, 1 kHz
Connector	1/8" / 3.5 mm Locking Mini Plug
Cable Length	4.0' / 1.2 m
Dimensions	Not Specified by Manufacturer
Weight	Not Specified by Manufacturer
