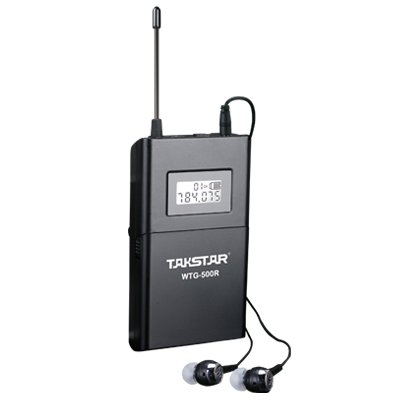

Takstar WTG-500R Receiver for WTG-500 Wireless Acoustic Transmission System

Product Description

Features
PLL frequency synthesis technique for stable signal transmission
UHF frequency range with 6 selectable channels
Low power consumption design,receiver can work for more than 24hrs by using 2pcs alkaline batteries
One transmitter can be operated with multiple receivers within the operating range
Dynamic expanding circuit for high S/N ratio
Complex interference-free circuit for using more than 4 sets simultaneously without mutual interference
Both transmitter and receiver use LCD-display to indicate frequency,channel,battery,level status
Long operating range up to 100m

Application
Wireless tour guiding, simultaneous translation, audio-visual eduation

Specification
Carrier Frequency：780-789MHZ
Frequency Response：30Hz-15KHz
Number of Channels：6
Receiving Sensitivity：S/N:12dB 3uV
S/N Ratio：≥50dB
Operating Range： >100m
Receiver Power Supply: 2x1.5 AA Alkaline battery

Product Content

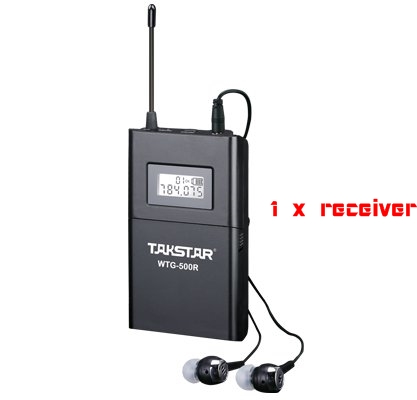

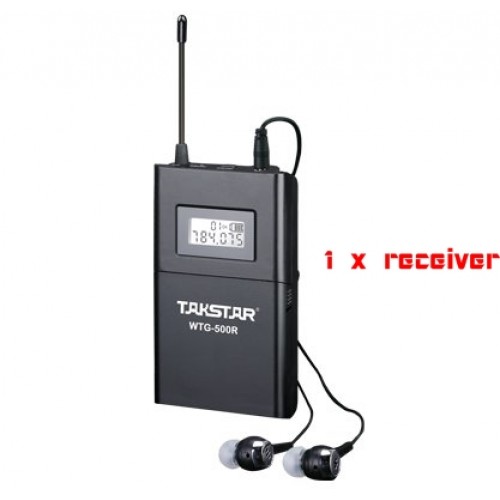

WTG-500R receiver 1pc
Earphone 1pc
